HK Audio FINEO-FO-S112-F-WHT 1200-Watt 12" Install Subwoofer. (Flyable) White

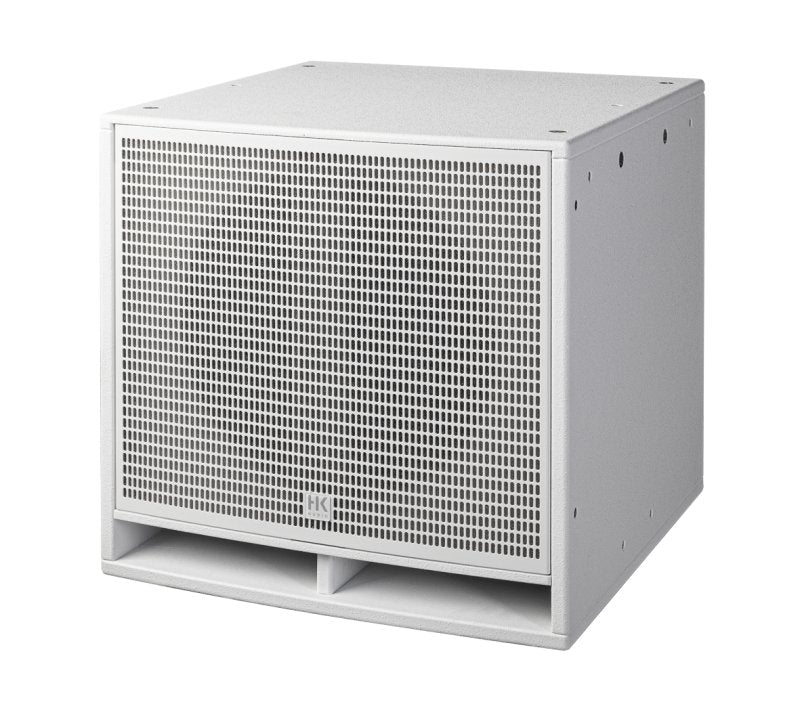

The FO"S112"F is the flyable version of the extremely compact FO"S112 subwoofer. With its 12" woofer with 2.5" voice coil and 50 Hz tuning frequency, it makes the ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO"5. Installation is simple and secure with the optionally available U-bracket or AP-8 attachment points. Four M8 threads on the side and four M8 threads on the top are available for mounting. For aesthetic reasons, the FO"S112"F does not have the cut-outs for cable routing or rubber feet. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN"18032-3 is provided for installations in sports facilities.

• Concept: Flyable passive subwoofer
• Cabinet principle: Bass reflex
• Power handling RMS: 600 W
• Power handling program: 1200 W
• Power handling peak: 2400 W
• Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
• Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 116 dB
• Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space): 120 dB
• Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space): 91 dB
• Frequency range -6 dB: 61 Hz - crossover frequency
• Frequency range -10 dB: 42 Hz - crossover frequency
• Dispersion angle -6 dB: omnidirectional
• Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
• IP protection class (EN 60529): not specified
• Low frequency: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil
• Crossover: no internal crossover

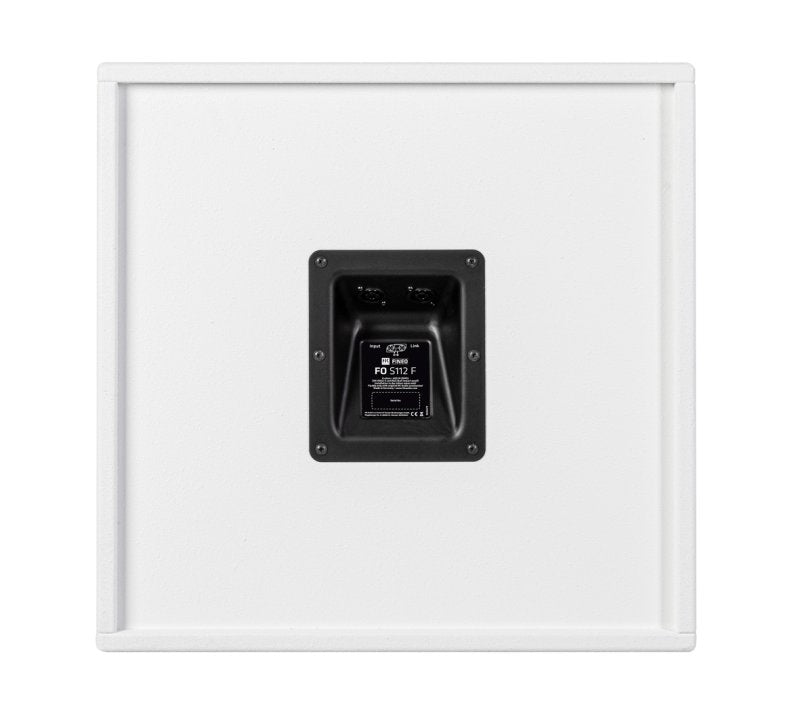

• Input : 1 x NL4 Speakon
• Output/parallel output: 1 x NL4 Speakon
• Pin assignment: 2+/- (input/parallel output), 1+/- (wired through)
• Lab.Gruppen IPX
• LEA Professional: Sharkware
• Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
• Cabinet material: MDF
• Cabinet surface: 1-component acrylic enamel

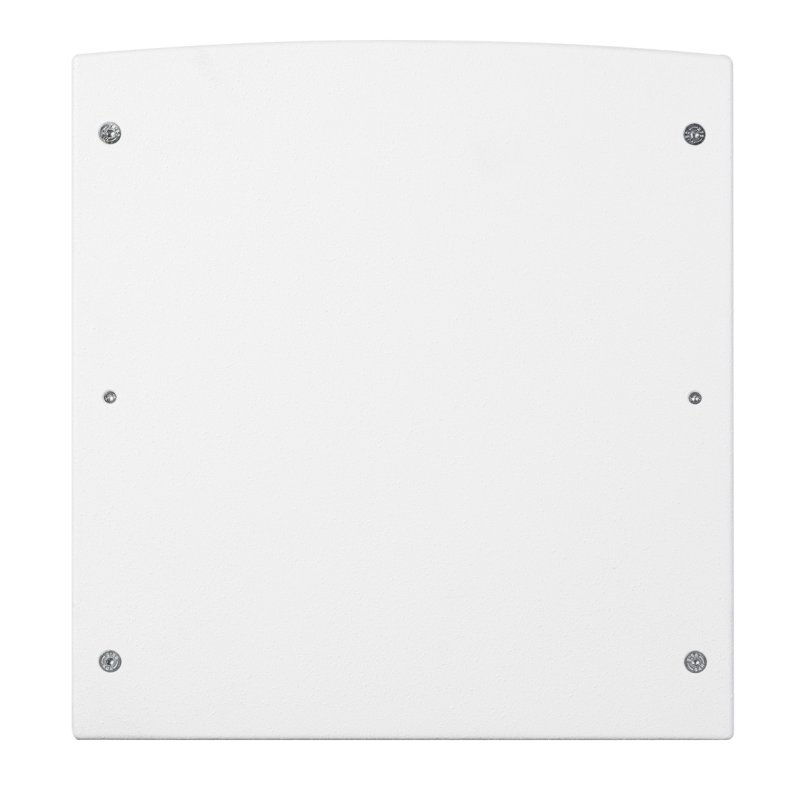

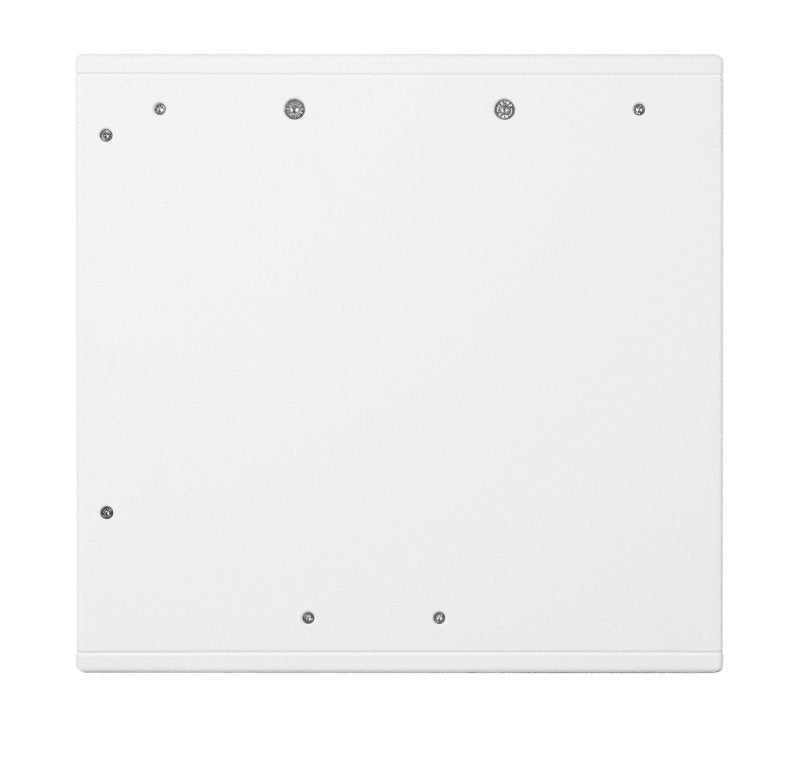

• Mounting points: 4 x M8 lateral, 4 x M8 lid
• Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

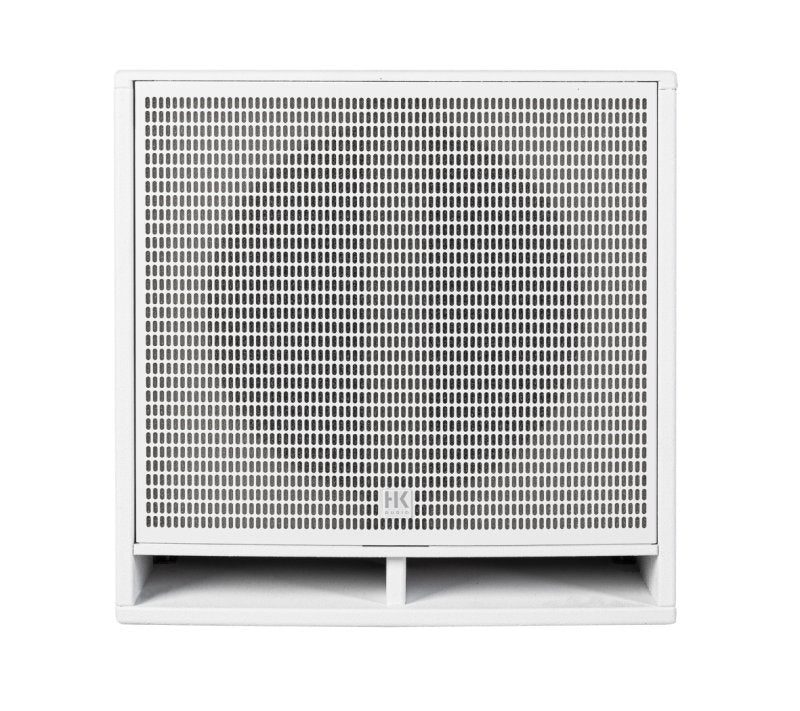

• Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
• Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal
• Cable routing: n/a
• Feet: n/a
• Accessories: U-bracket, AP-8
• Dimensions (WxHxD): 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch
• Weight: 25.2 kg 55.56 Ibs
