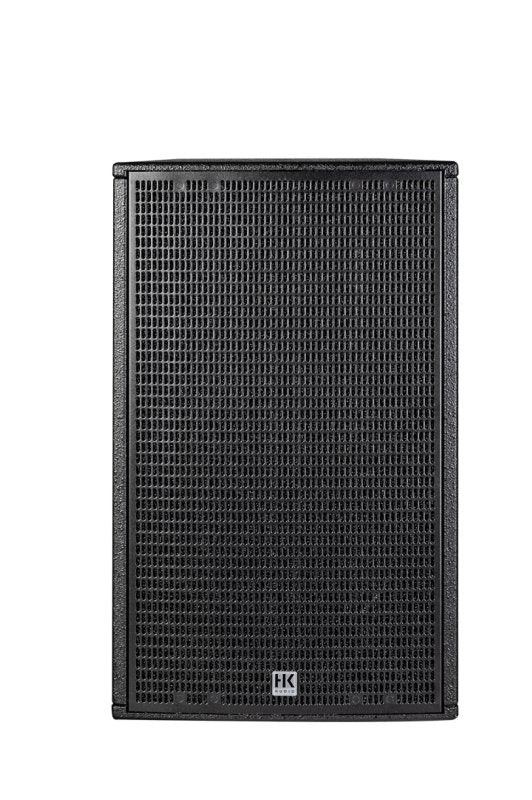

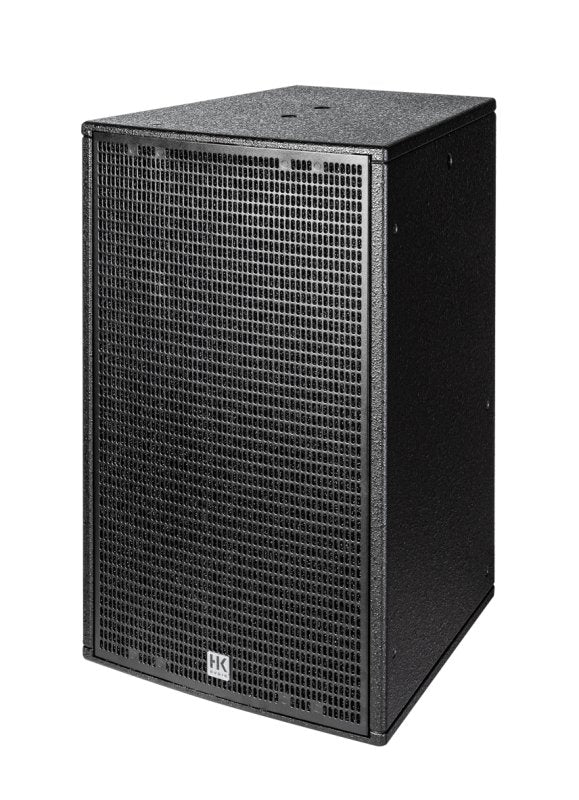

HK Audio FINEO-FO-12-BLK 800-Watt 12" Install Speaker. Black

In this newly fine-tuned speaker system, the proven standard format with a 12" low-frequency woofer and a high-resolution 1" high-frequency driver, provides the ideal compromise between achievable sound pressure and low colouration in the reproduction of all types of music and speech. The BEM-optimized constant directivity horn with the powerful 1" compression driver comes from the CONTOUR X series, which was developed for the rough and tumble of touring. With a dispersion angle of 80° x 60° and the ability to rotate 90°, it always delivers the optimum dispersion pattern whether it is used horizontally or vertically. In combination with subwoofers such as the S118 or S218, the result is a very powerful system that can reproduce modern music styles at a high level without any restrictions. The FO"12 can also be used for larger venues, provided that further-away areas of the room are boosted with delay speakers (e.g. with the FO"5, which can be installed unobtrusively).

• Concept: Passive 2-way mid/high unit
• Cabinet principle: Bass reflex
• Power handling RMS: 400 W
• Power handling program: 800 W
• Power handling peak: 1600 W
• Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
• Max. SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space): 121 dB
• Max. SPL peak (1 m, 10 % THD @ 1.2 kHz, full space): 126 dB
• Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space): 94 dB
• Crossover frequency: 2.6 kHz
• Frequency range -6 dB: 70 Hz - 20 kHz
• Frequency range -10 dB: 65 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 80° x 60°
• Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
• IP protection class (EN 60529): not specified
• Low-/mid frequency: 1x 12" Sica cone speaker with ferrite magnet and 2" voice coil
• High frequency: 1 x 1" Sica compression driver with ferrite magnet and 1" voice coil
• Crossover: High pass: 18 dB/octave, low pass: 12 dB/octave
• High frequency protection circuit: Self-healing PTC fuse
• Horn: BEM-optimized constant directivity horn, rotatable

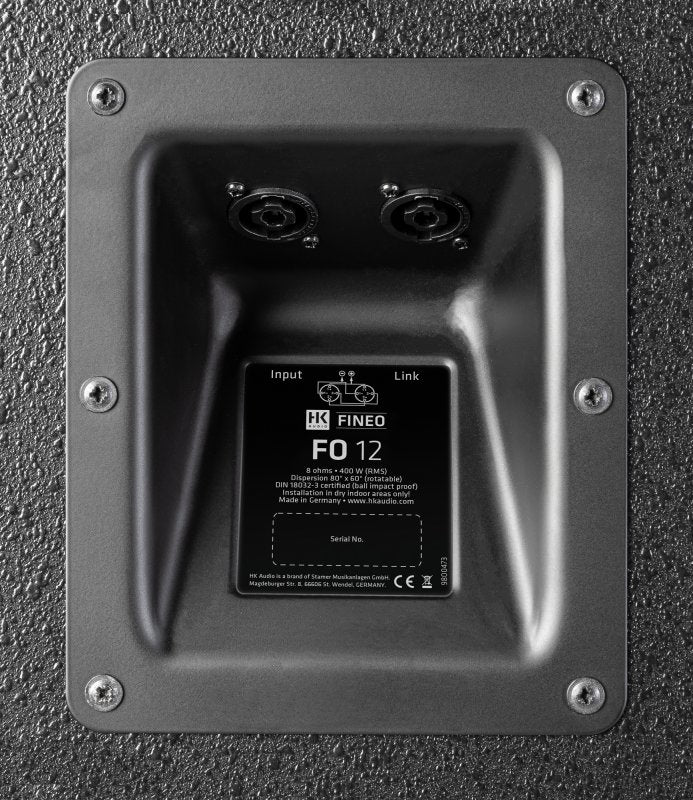

• Input: 1 x NL4 Speakon
• Output/parallel output: 1 x NL4 Speakon
• Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
• Lab.Gruppen: IPX
• LEA Professional: Sharkware
• Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
• Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M6 rear
• Cabinet material: MDF
• Cabinet surface: 1-component acrylic enamel
• Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
• Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
• Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size L for VESA MIS-E, 200 x 200 mm), AP-8

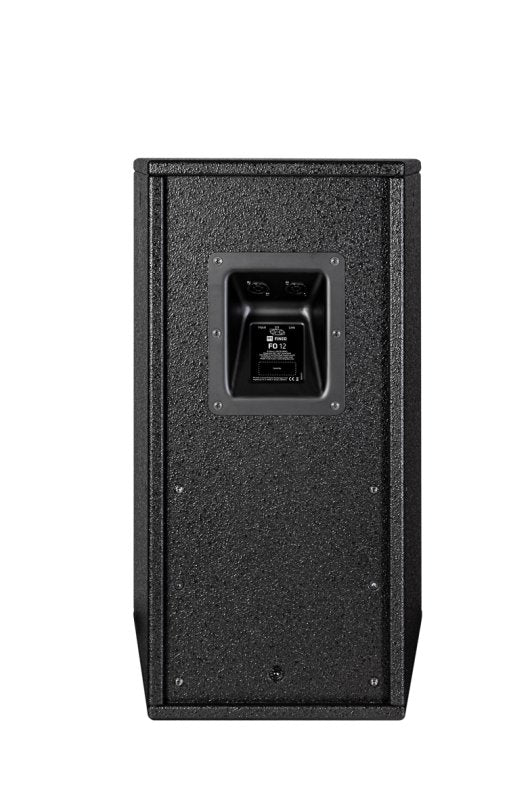

• Rear
