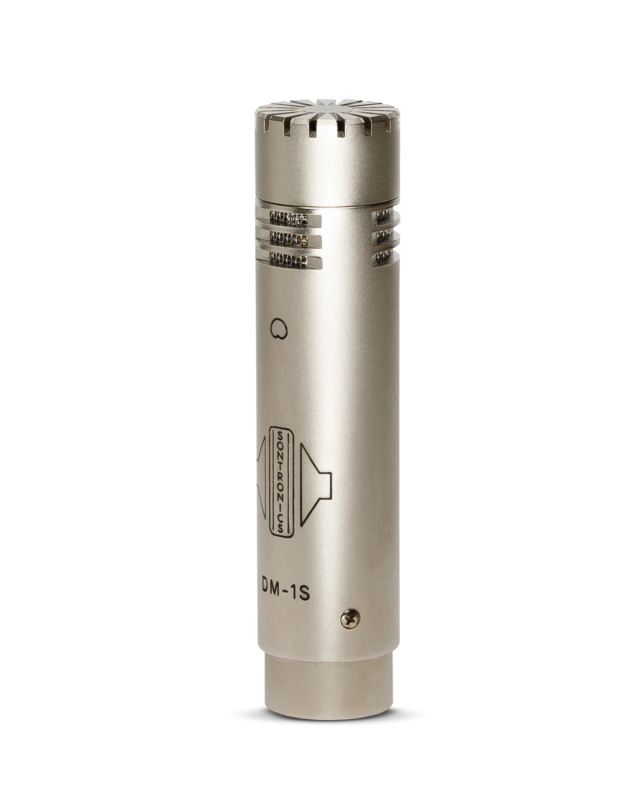

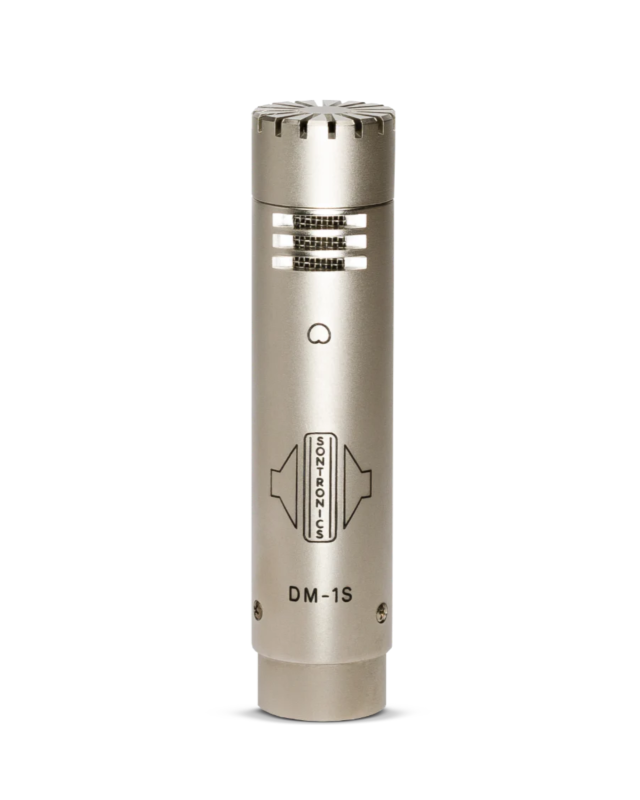

Sontronics STDM1S Small-Diaphragm Condenser Microphone for Snare Drum

The Sontronics DM-1S is a small-diaphragm cardioid condenser microphone designed to capture the detail and character of snare drum and percussion. Developed over three years with top session drummers and engineers, it is specifically recommended for snare drum, djembe and tambourine.

Its compact body measures 91 x 22 x 22 mm and weighs 0.1 kg. A 30 Hz to 20 kHz frequency response and 14 dB A-weighted equivalent noise level support detailed capture, while the switchable -10 dB pad allows a maximum SPL of 135 dB when engaged. DM-1S uses a 3-pin XLR connector and requires 48 V phantom power.

• Small-diaphragm cardioid condenser microphone for snare drum and percussion
• Recommended for snare drum, djembe and tambourine
• Developed over three years with session drummers and engineers
• Frequency response: 30 Hz to 20 kHz
• Pad settings: 0 dB and -10 dB
• Maximum SPL: 135 dB with the -10 dB pad engaged, at 0.5% THD, 1 kHz
• Sensitivity: 16 mV/Pa; equivalent noise level: 14 dB (A-weighted)
• Compact 91 x 22 x 22 mm body; microphone weight: 0.1 kg
• 3-pin XLR connector; 48 V phantom power required
