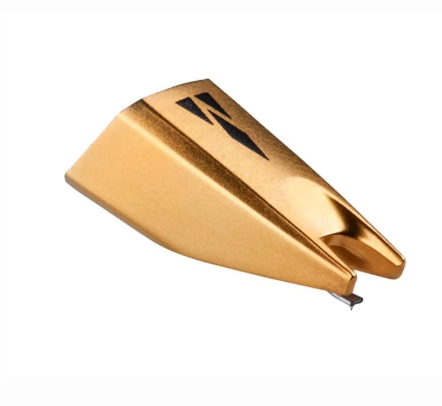

ORTOFON Stylus CC MKII Elite

Replacement stylus

The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.

The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.

Specifications

• Output voltage at 1 kHz, 5 cm/sec: 8.5 mV
• Tracking ability at 315 Hz: 100 μm
• Stylus type: Nude Elliptical
• Stylus tip radius: r/R 8/18 μm
• Channel separation at 1 kHz: 25 dB
• Dynamic lateral compliance: 13 μm/mN
• Recommended tracking force: 3.0 g
• Cartridge weight: stylus = 1 g
• Channel balance at 1 kHz: 1 dB
• Tracking angle: 20°
