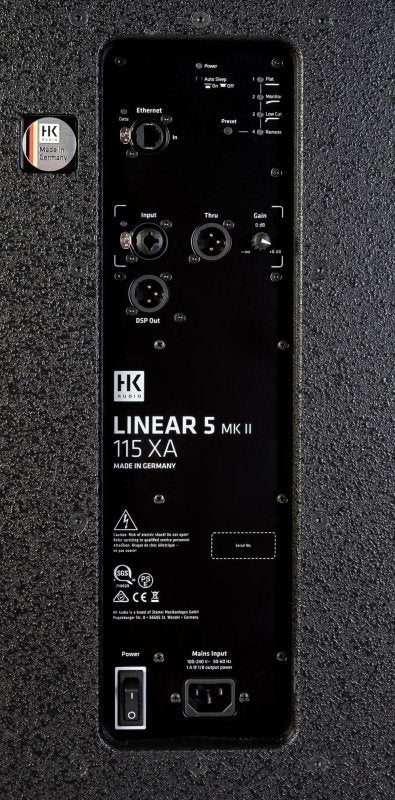

HK Audio LINEAR-5-MK2-115-XA 1200-Watt 15" Multi Function Active Speaker

Multifunctional mid/high unit with high level output and noticeable structure-borne sound

• Max. SPL @ 10 % THD: 130 dB half space (70 Hz – 12 kHz averaged)
• Max. SPL Peak @ 10 % THD: 138 dB half space
• Frequency response +/-3 dB: 64 Hz – 12 kHz
• Frequency response -10 dB: 59 Hz – 19 kHz
• Power amp output (RMS/Peak): 600 / 1,200 W
• Amplifier type: Class D – bi-amped
• Low/mid speaker: 1 x 15", 3" voice coil
• HF driver: 1", 1.7" voice coil
• Horn characteristics: 70° x 50° CD horn, rotatable
• Active x-over frequency: 1.6 kHz FIR X-over with 72 dB/oct.
• Maximum input level: 20 dBu
• Analogue inputs: 1 x XLR combo balanced
• Analogue Thru: 1 x XLR balanced
• DSP Out: 1 x XLR balanced
• Network port: EtherCON RJ45, 1 x In
• Filter presets: Flat, Monitor, Low Cut, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate: 48 kHz
• System latency: Less than 2 ms
• Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
• Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
• Setup angle: 31°
• Pole mount: DuoTilt 3°/7°
• Rigging points: 3x M8 (AP-8)
• Carrying handles: 2 x MultiGrip, 1 x SingleGrip
• Housing: Hybrid (birch multiplex/MDF)
• Surface: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32"
• Weight: 27.6 kg / 60.85 lbs
