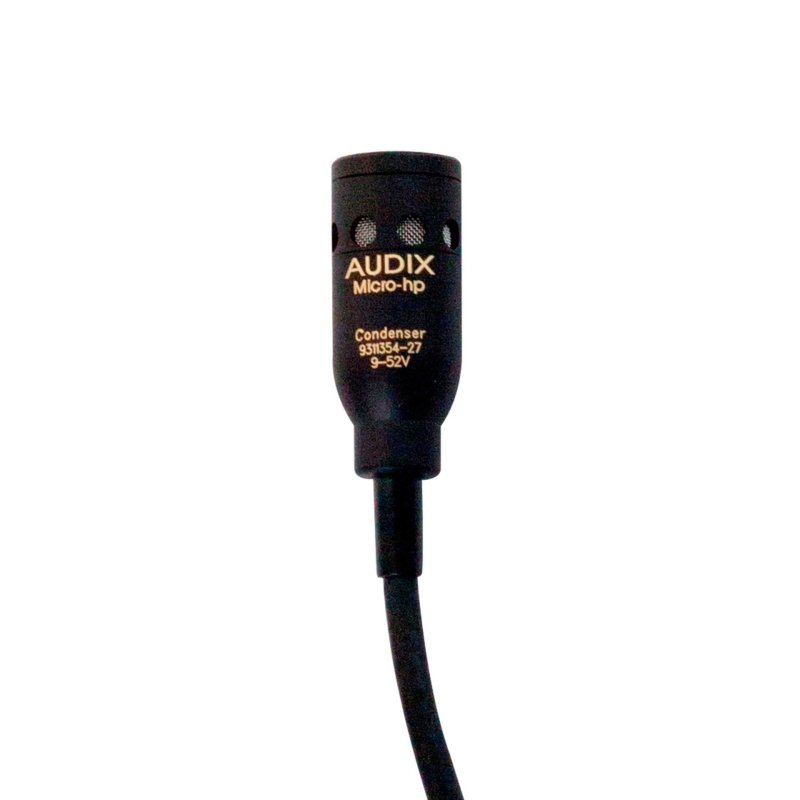

Audix Microhp Miniature Condenser Lug-mounted Microphone

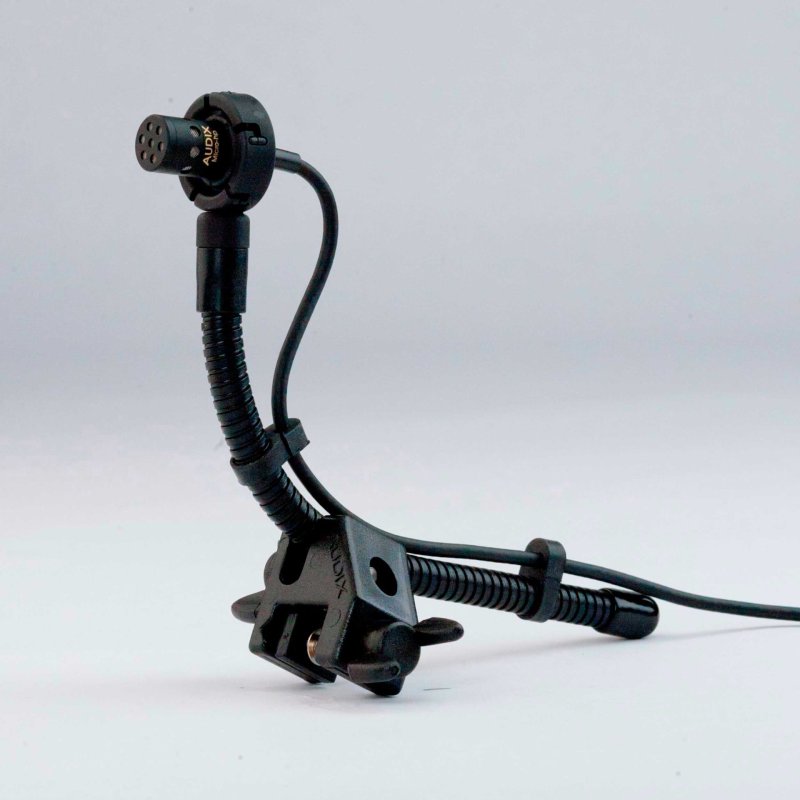

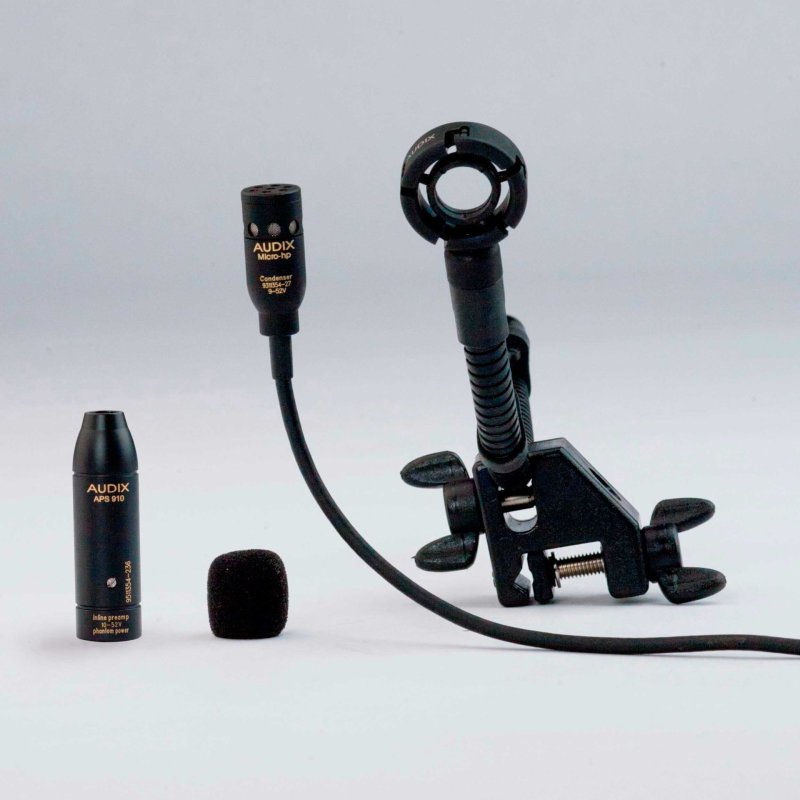

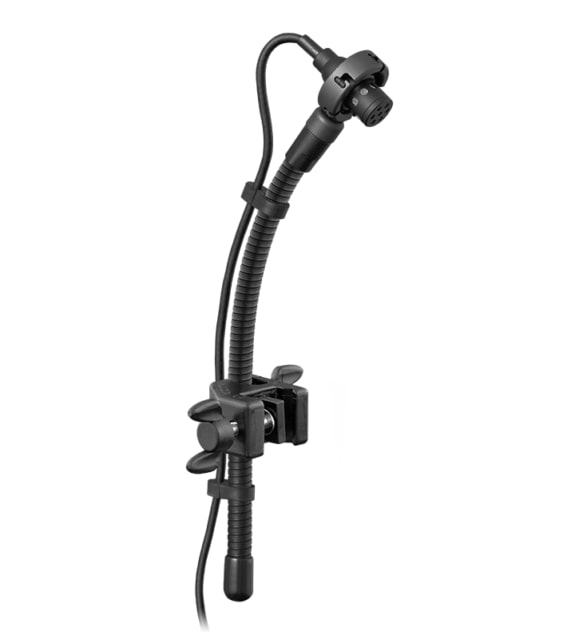

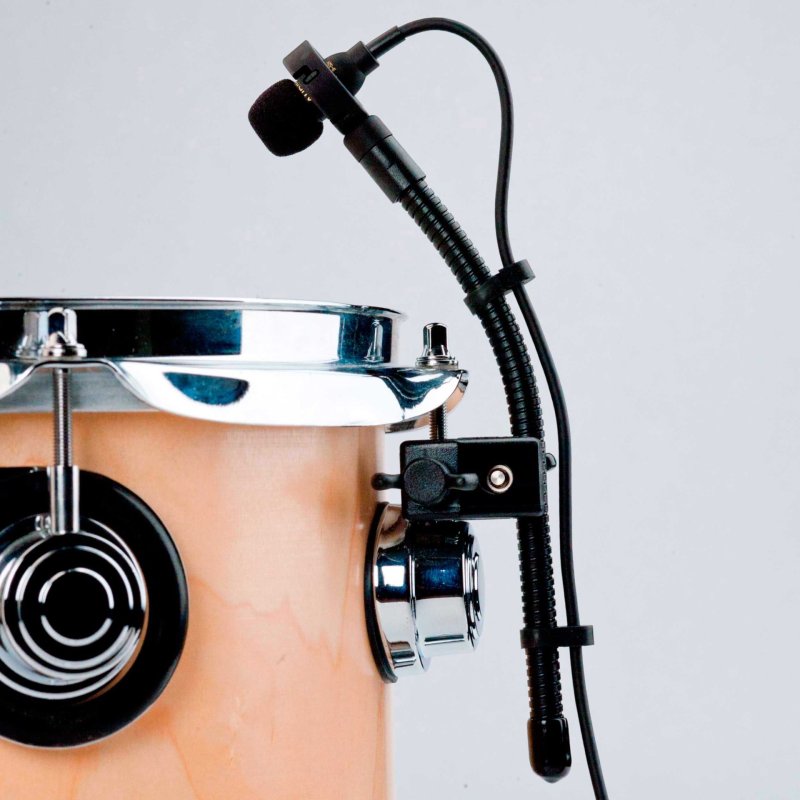

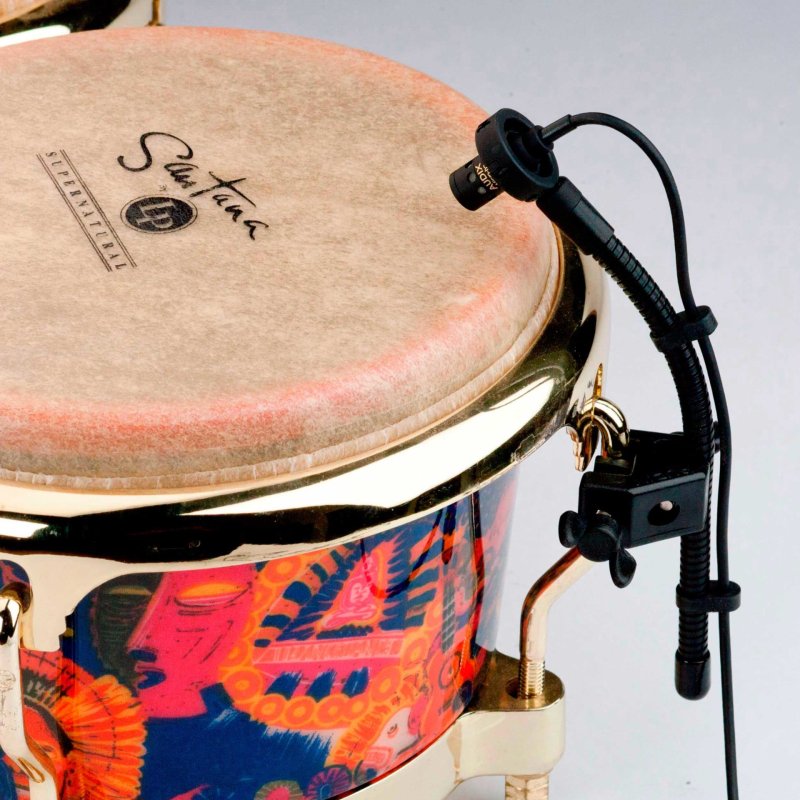

The MicroHP condenser instrument microphone is manufactured with a uniformly controlled cardioid polar pattern and provides excellent isolation and feedback control on stage. Used for professional stage and studio applications, the MicroHP is designed with clarity, excellent transient response, resistance to feedback, and high SPL capabilities. This mic is targeted for hand percussion instruments and drum instrument applications. Housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroHP attaches to the lug of an instrument via the Audix DCLAMP mounting system. The MicroHP miniature condenser instrument microphone requires phantom power of 9 – 52 V. Designed, machined, assembled, and tested by Audix in the USA.

• Transducer Type Pre-Polarized Condenser
• Frequency Response 40 Hz – 20 kHz
• Polar Pattern Cardioid
• Output Impedance 250 ohms
• Sensitivity 6 mV / Pa @ 1k
• Equivalent Noise Level 24 dB
• Signal to Noise Ratio 70 dB
• Maximum SPL =140 dB
• Power Requirements 9 – 52 V phantom
• Connector 3-pin mini to 3-pin XLRm (APS910)
• Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish Machined Brass Capsule / Black Finish
• Gooseneck Flexible Steel
• Weight 47 g / 1.6 oz
• Length 30 mm / 1.14 in
