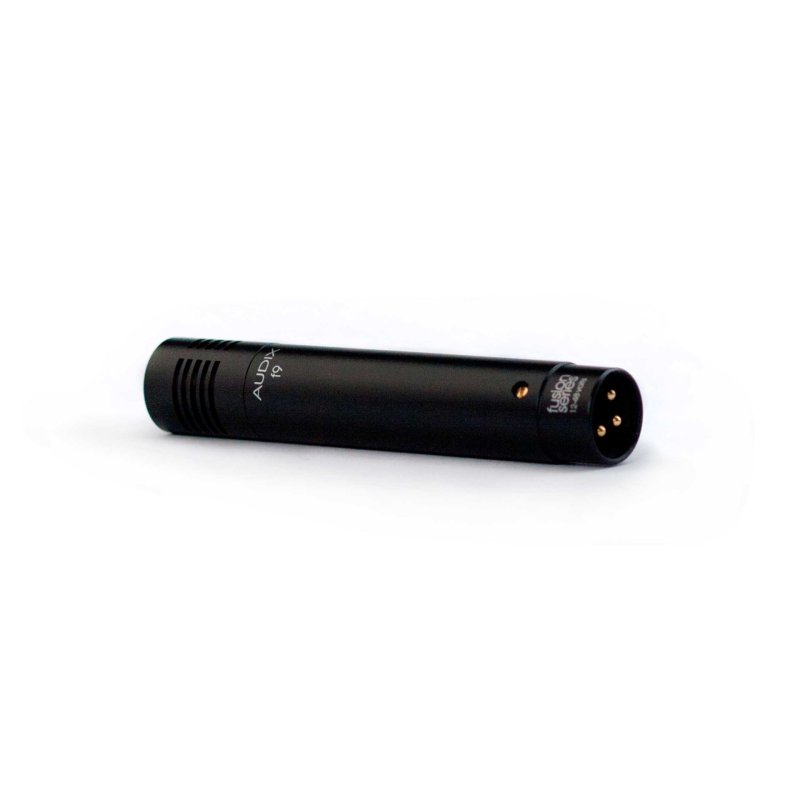

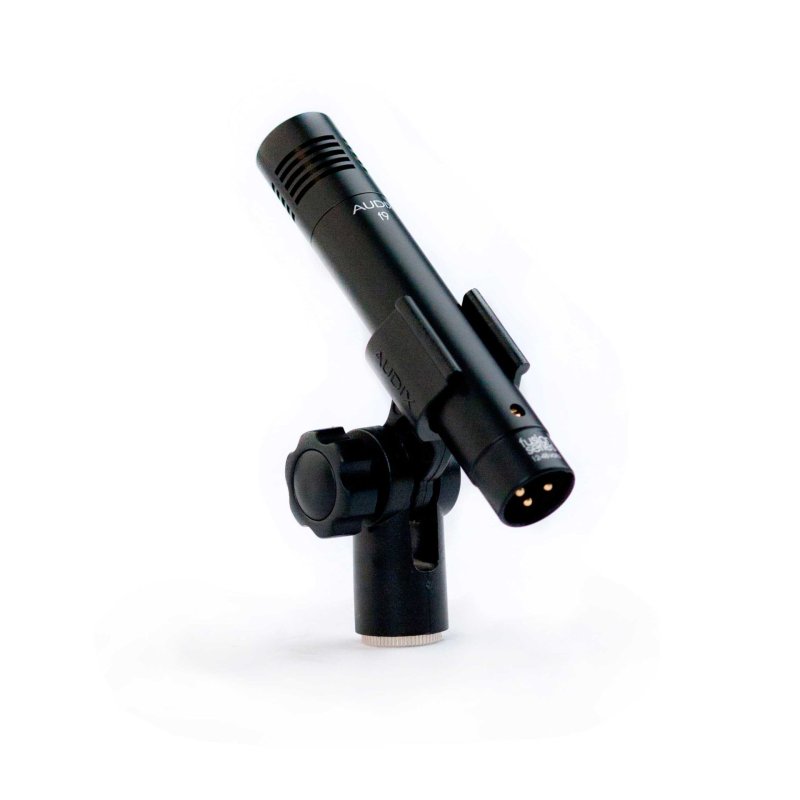

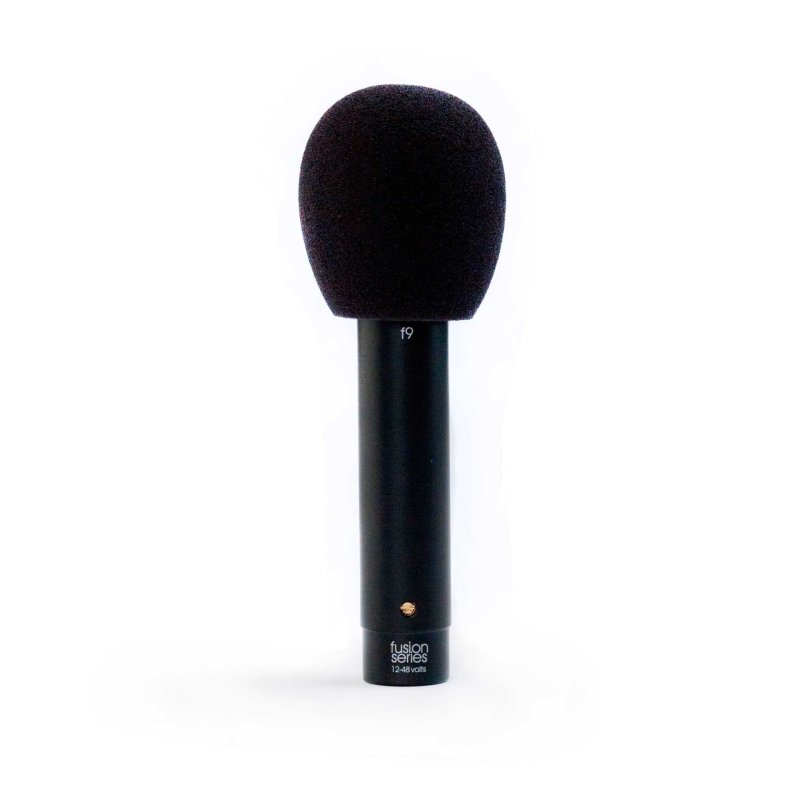

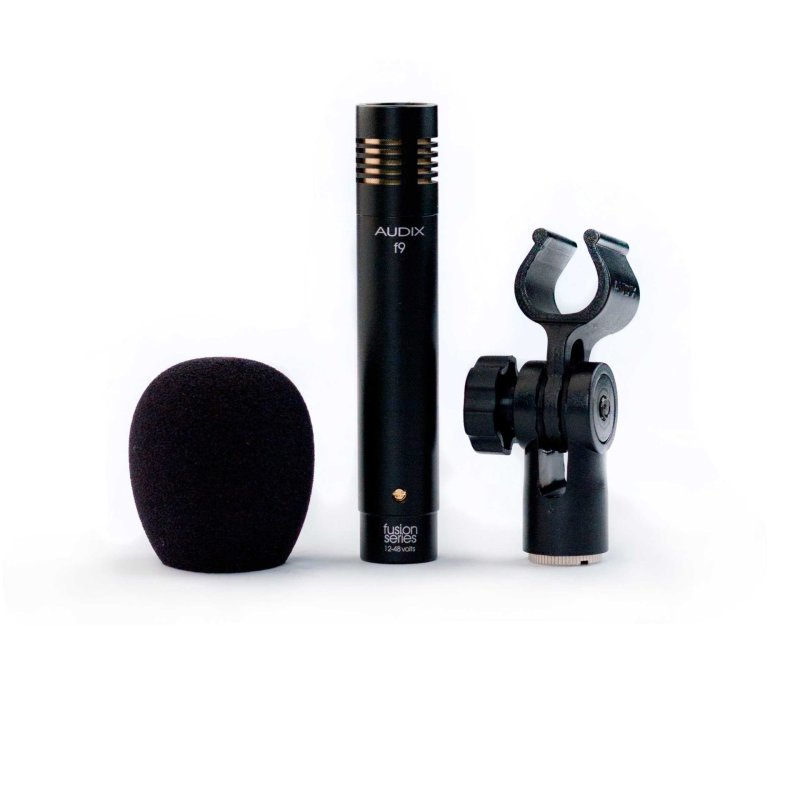

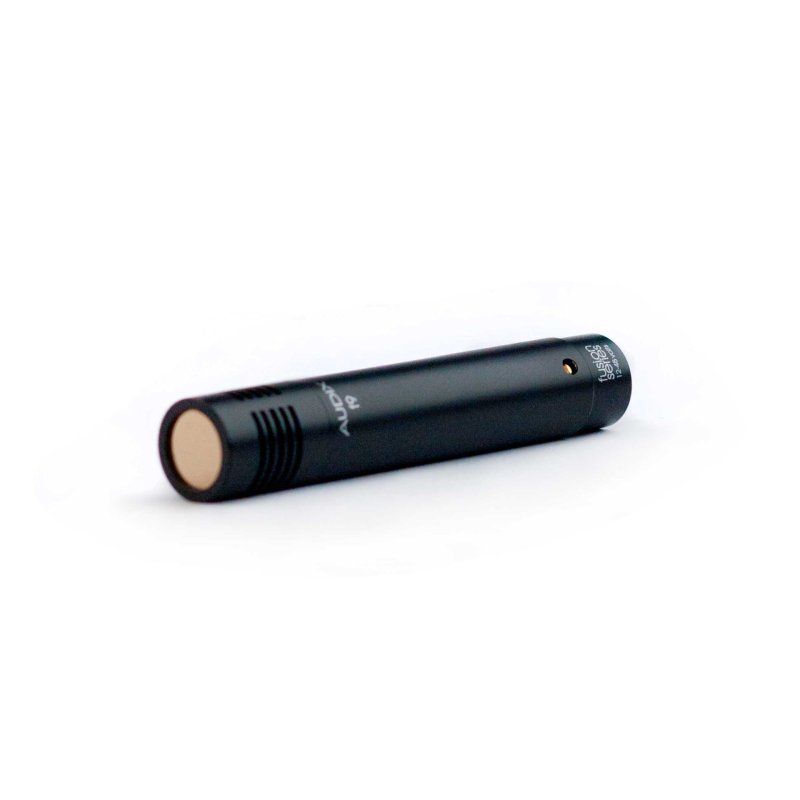

Audix F9-ADX All-purpose Pencil Condenser Microphone
Audix F9-ADX All-purpose Pencil Condenser Microphone
SKU: F9-ADX
This f9 all-purpose pencil condenser microphone is suited for instruments requiring detailed reproduction in mid-high and extended high-end frequency ranges in live and studio applications. A wide cardioid pick-up pattern paired with high sensitivity allows close, overhead, and distance miking. With its low impedance and balanced output, the f9 instrument condenser microphone has an interference-free performance. This microphone operates on phantom power of 12-48 V.
- Transducer Type Pre-Polarized Condenser
- Frequency Response 40 Hz – 20 kHz
- Polar Pattern Cardioid
- Output Impedance 200 ohms
- Sensitivity 8 mV / Pa @ 1k
- Capsule Technology Gold Vapor Deposition
- Equivalent Noise Level 25 dB (A-weighted)
- Signal to Noise Ratio 69 dB
- Off-Axis Rejection >24 dB
- Maximum SPL =137 dB
- Power Requirements 12-48 V Phantom
- Dynamic Range 112 dB
- Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish Zinc Alloy / Black Finish
- Weight 95 g / 3.3 oz
- Length 111 mm / 4.37 in
