Ashly FX-500.4 FX Series 2000W 4 Channel 2RU Compact Class D Multi Mode Power Amplifier

The Ashly FX500.4 is ideal for use in auditoriums, catering and conference rooms. The FX Series' pedigree is the culmination of compact Class D design so successfully implemented in the FA Series and Ashly's years of providing easy-to-use software. Along with a newly incorporated DSP engine & software UI, FX takes amplification to new levels. FX is networkable via Ethernet for wired LAN connection, or directly via its built-in WiFi hotspot. No network router needed. FX allows system configurations that don't require additional equipment, such as stand-alone DSP or speaker system processors. All of that is in one box. That saves space, money & time. With 6 models to choose from starting at 2 x 60W in a ½ RU to 4 x 500W in 2 RU, there's an FX that will fit just about any project. Each offers a healthy compliment of IO (include Digital SPDIF In & Out) and programmable integration ports for remote Volume control, GP triggers and more.

• Offers high power density: 500W x 4Ch in 2 RU chassis
• Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software

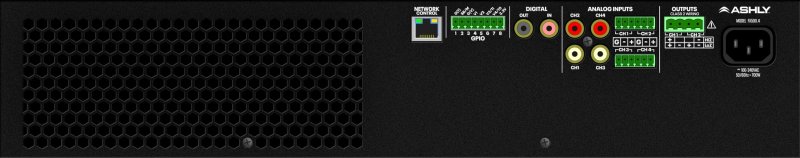

• Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
• 2-channel SPDIF Digital IO

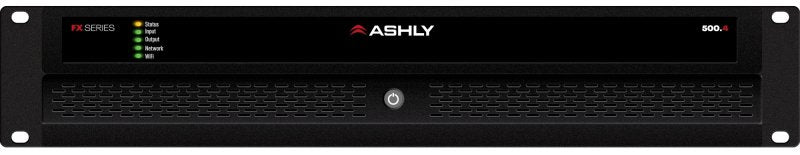

• Front panel status LEDs for amp, Input, output & network
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
• Browser-based UI accessed via PC or mobile device. No software to install.
• All models have 4 Input channels x 2 or 4 Output channels
• Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
• Customized Speaker Presets made be created, saved & loaded for each output channel
• Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
• Highly efficient Class D and lightweight

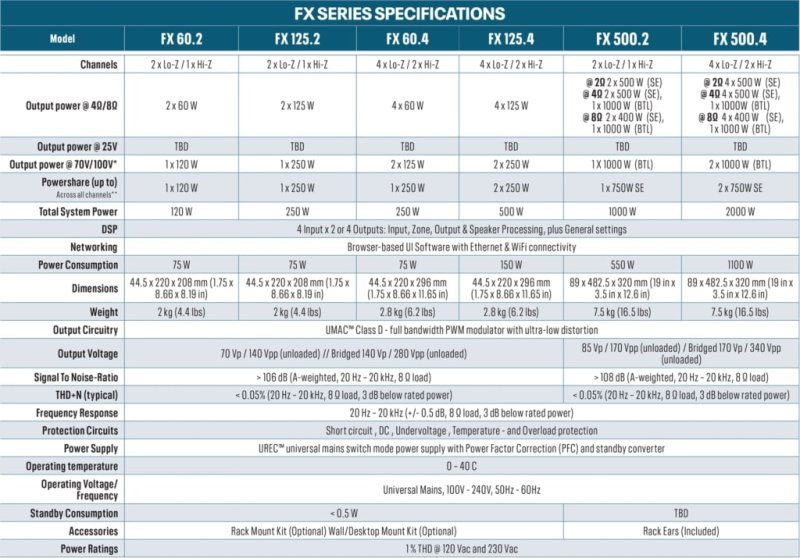

• Channels: 4 x Lo-Z / 2x Hi-Z
• Output Power @ 4O/8O: at 2O 4x500W (SE), at 4O 4x500W (SE)/1x1000W (BTL), at 8O 4x400W (SE)/1x1000W (BTL)
• Output Power @ 25V: TBD
• Output Power @ 70V/100V: 2x1000W (BTL)
• Powershare - Across All Channels (up to): 2x750W (SE)
• Total System Power: 2000W
• DSP: 4 Input x 4 Outputs: Input, Zone, Output & Speaker Processing, plus General Settings
• Networking: Browser-based UI Software with Ethernet & WiFi Connectivity
• Power Consumption: 1100W
• Dimensions: 89x482.5x320mm (19x3.5x12.6 inch)
• Weight: 7.5 kg (16.5 lbs)
• Output Circuitry: UMAC Class D - Full bandwidth PWM Modulator with Ultra-low Distortion
• Output Voltage: 85 Vp / 170 Vpp (unloaded) // Bridged 170 Vp / 340 Vpp (unloaded)
• Signal to Noise-Ratio: >108 dB (A-Weighted, 20 Hz - 20 kHz, 8 O load)
• THD+N (typical): <0.05% (20 Hz - 20 kHz, 8 O load, 3 dB below rated power)
• Frequency Response: 20Hz-20kHz (+/- 0.5dB, 8 O load, 3 dB below rated power)
